Suits Your Needs

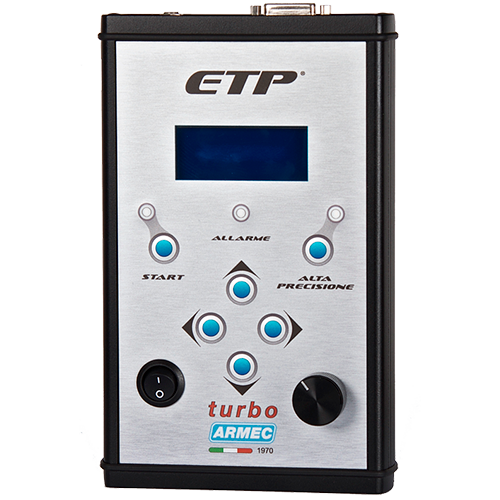

ETP is able to quickly test the electronic and electro pneumatic actuators of the turbocharger.
It has been designed to diagnose and possibly repair the actuators on modern turbochargers.
Extensive and reliable functions, make the ETP tester the new reference point for the Automotive professionals.
Versatility
and Simplicity
Rugged design, matches intuitive data visualization thanks to the wide display, allowing you to overview important information for a complete diagnosis.
Its DATABASE allows users to obtain all necessary information for effective programming.
PWM and CAN-bus communications protocols go through dedicated cables, one for each type of actuator.
Double Functionality
The device allows control of the turbo VNT arm’s movement to check if it is fluid and solid; verify if all electronics and mechanical parts work properly, and manage internal DC motors that control arm movement.

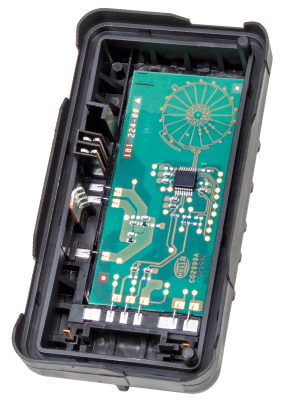

Reads data on the electronic board and if necessary, writes a new data package to make it compatible with the market major car manufacturers.
Cables and Connectors
ETP is equipped with 28 cables with original connectors compatible with more than 730 turbochargers.
Hella, Siemens (VW/Audi), Mitsubishi, Sonceboz, Hitachi, Continental, Magneti Marelli, Mando, Kamtec, Mahle, Denso and many more actuators makers are supported by ETP.
Discover more inside the complete list of cables, sorted by brand.
Operation
Goes On Stage
ETP Tester can be successfully operated by professionals experienced in the remanufacturing of turbochargers and by any car technician, looking for a reliable partner to solve painful problems related to malfunctions of this delicate component.
Technical Specifications
Generali
Model Name ETP
Electrical
Rated Voltage 15 V CC
Rated Current 4 A
Phase 1 Phase + N + PE
50 / 60 Hz
Maximum Power 65 W
Physical
Dimension L x P x H 225 x 136 x 36,7 mm
Weight 785 g
Ambient Temperature Limits Deg °C (min/max) 5 / 45 °C
Always Ready
Thanks to the practical case, you could take with you all the necessary tools for an optimal intervention.
Easy to transport, it safely carries your valuable equipment.
Through dedicated slots, your kit will always be well organized and ready to deploy.
Technical Specifications
General
ETP Case
Dimension
External dimensions 456 x 385 x 144 mm (L x A x P)
Physical
Weight 2,7 kg
